The Variable and Flexible Test Device

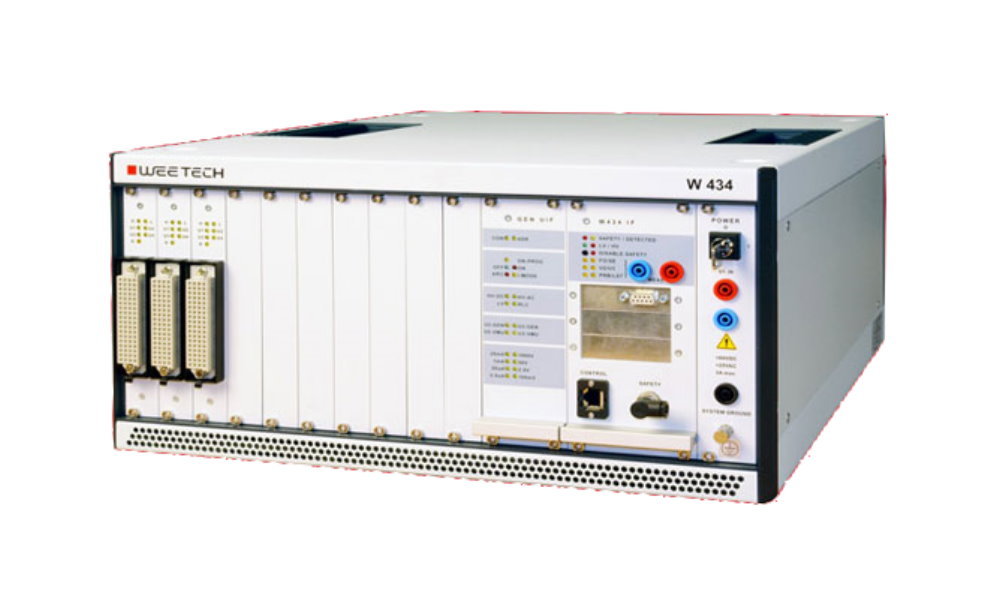

The W 434 Test Device for the cable test und the functional test can be ideally adjusted to the needs of the automotive industry, electrical engineering and the medical device industry by combining different types of low voltage and high voltage generators as well as a RLC meter. It can be seamlessly integrated into an automated production system and manages testing of different variants.
As soon as the testing specifications change hardware options of the generators can be released subsequently by a firmware upgrade. You don’t have to finalize your decision when purchasing and can react flexibly on new demands.
Highlights
High performance in a compact design
Broad variety of tests: low voltage test, high voltage test, functional test
Future-proof decision: hardware extension by firmware upgrade
High performance in a compact design
Broad variety of tests: low voltage test, high voltage test, functional test
Future-proof decision: hardware extension by firmware upgrade
Benefits
High performance in a compact design
Compact single-board generator saves space and reduces costs
Programmable current source up to 1 A
Test point modules with 64 test points for a maximum density of measurement points
Hybrid modules with 64 test points or 64 power points to switch voltages up to 25 VAC / 60 VDC
Combi modules with 32 or 64 test points and 8, 32 or 64 power points
Extension to up to 6,656 test points with ETE 434 expansion units possible
Future-proof decision: hardware upgrade according to requirements
Hardware extension by firmware upgrade possible
Several high voltage generators up to 1,500 VDC / 1,060 VAC
External generators for functional tests up to 60 VDC / 25 VAC
RLC meter to measure any combination of resistance (R), inductance (L) and capacity (C) with programmable frequencies
Intuitive programming software CEETIS Smart
Convenient Auto prog function: networks and components of a golden sample are captured automatically and exported to the PC for further editing
Easy development of the test program on a standard PC
Integration into customer-specific ERP* systems
Innovative ID-chips for a random connection of adaptation cables on any outlet
No time-consuming allocation of plugs
No failures through incorrect connections
High Voltage Cable Test
