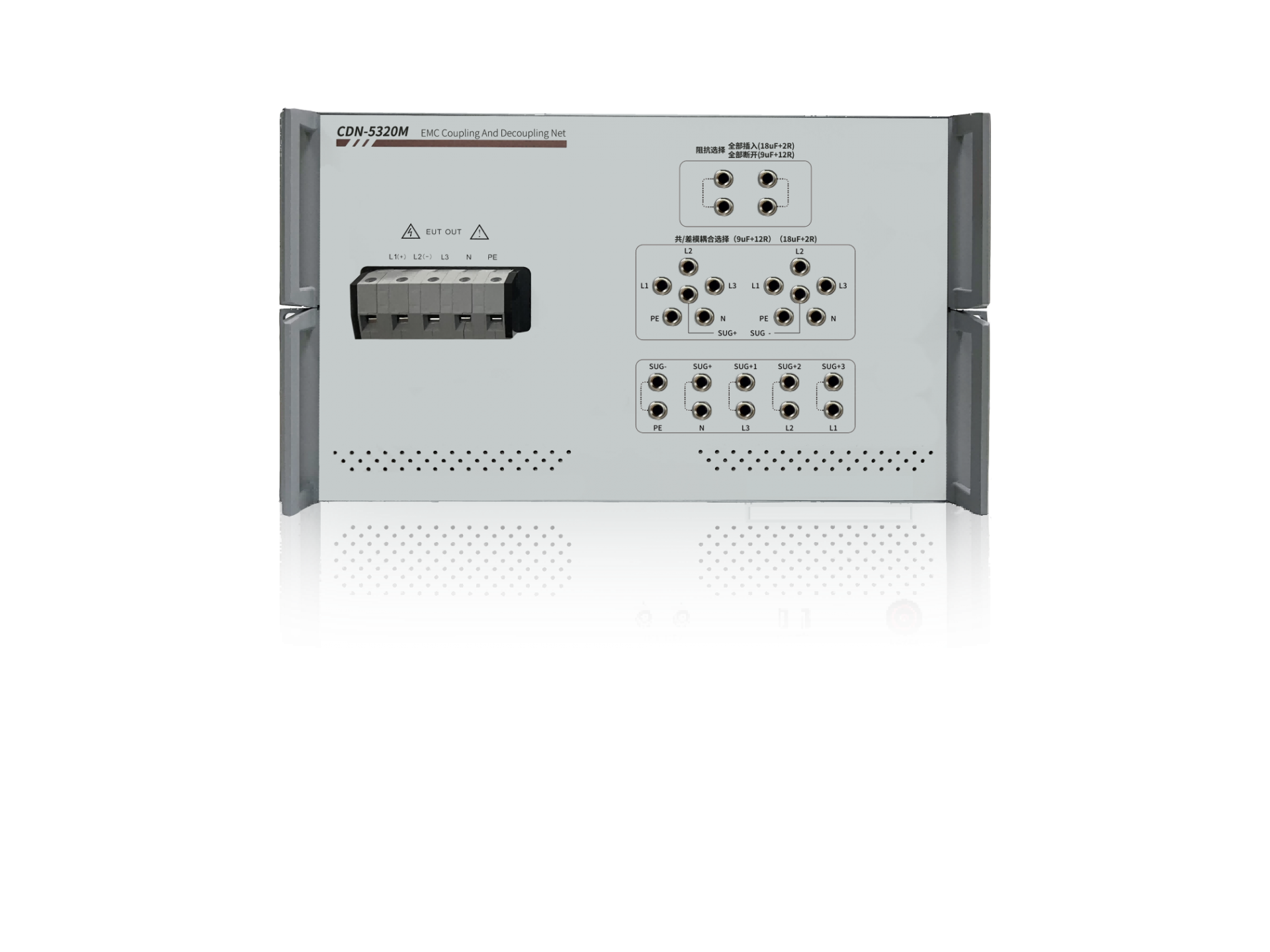

ATTICDN-5320M – Three-phase surge manual coupling/decoupling network
The lightning surge coupling/decoupling network, as a key component of the lightning surge/ringing wave test system, directly determines the consistency and repeatability of test results. The power line coupling/decoupling network complies with the calibration requirements for output waveforms specified in IEC 61000-4-5 Ed.3, providing accurate assessment means for electromagnetic compatibility immunity testing of products. It is used for the power ports and grounding ports of electrical and electronic equipment subjected to lightning surge interference, with currents up to 100 A and input surge pulses up to 12 kV.
