EMI Test Receiver

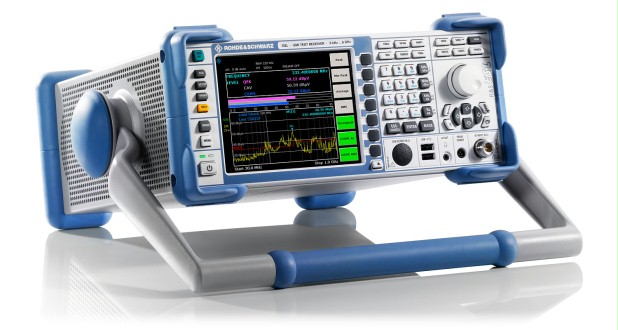

The R&S®ESL EMI test receiver combines two instruments in one, measuring EMC disturbances in accordance with the latest standards and also serving as a full-featured spectrum analyzer for diverse lab applications. The R&S®ESL is designed to meet the needs of cost-conscious users who want to perform diagnostic and precompliance EMI measurements up to 3 GHz or 6 GHz.

The combination of very good RF characteristics and all of the important functions needed for fast, precise measurement and evaluation of the EMC of a device under test in accordance with commercial standards is unmatched in this class of instrument. The diverse analysis capabilities, high measurement speed and time-saving automated test routines make the R&S®ESL the obvious choice for any development lab that needs to prepare for the final EMC certification tests.


Frequency range from 9 kHz to 3 GHz or 9 kHz to 6 GHz covering almost all commercial EMC standards

First-ever combination of an EMI test receiver and spectrum analyzer in the entry-level class

All major functions of an advanced EMI test receiver, including fully automated test sequences

Weighting detectors: max./min. peak, average, RMS, quasi-peak as well as average with meter time constant (CISPR-Average) and RMS-Average in line with the latest version of CISPR 16-1-1

Compact, lightweight instrument, can be battery-powered for mobile applications



-0.5 dB amplitude accuracy
-1 dB compression +5 dBm
-RF input pulse-resistant up to 10 mWs
-Displayed average noise level with preamplifier <-152 dBm (1 Hz)
-Resolution bandwidths 10 Hz to 10 MHz (–3 dB), 200 Hz, 9 kHz, 120 kHz (–6 dB), 1 MHz (impulse)
